V1000 Surgical Table
V1000 Surgical Table
or
Call 903-571-9300
Description
Versatility And Dependability
For Your OR

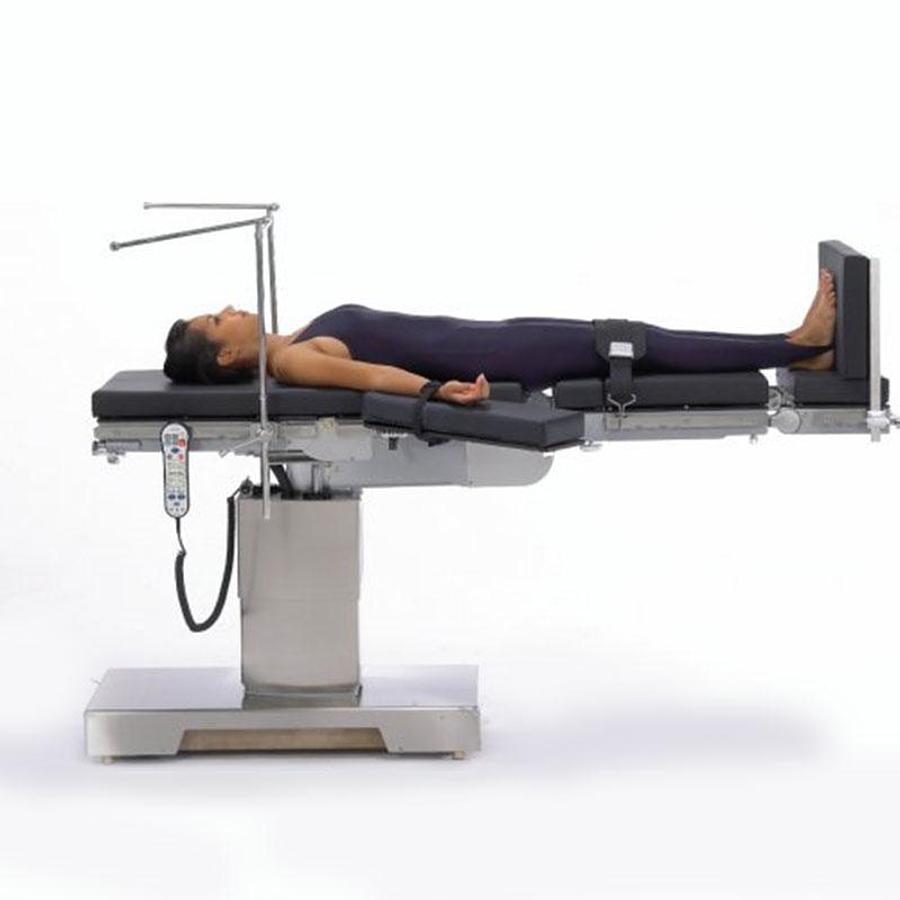

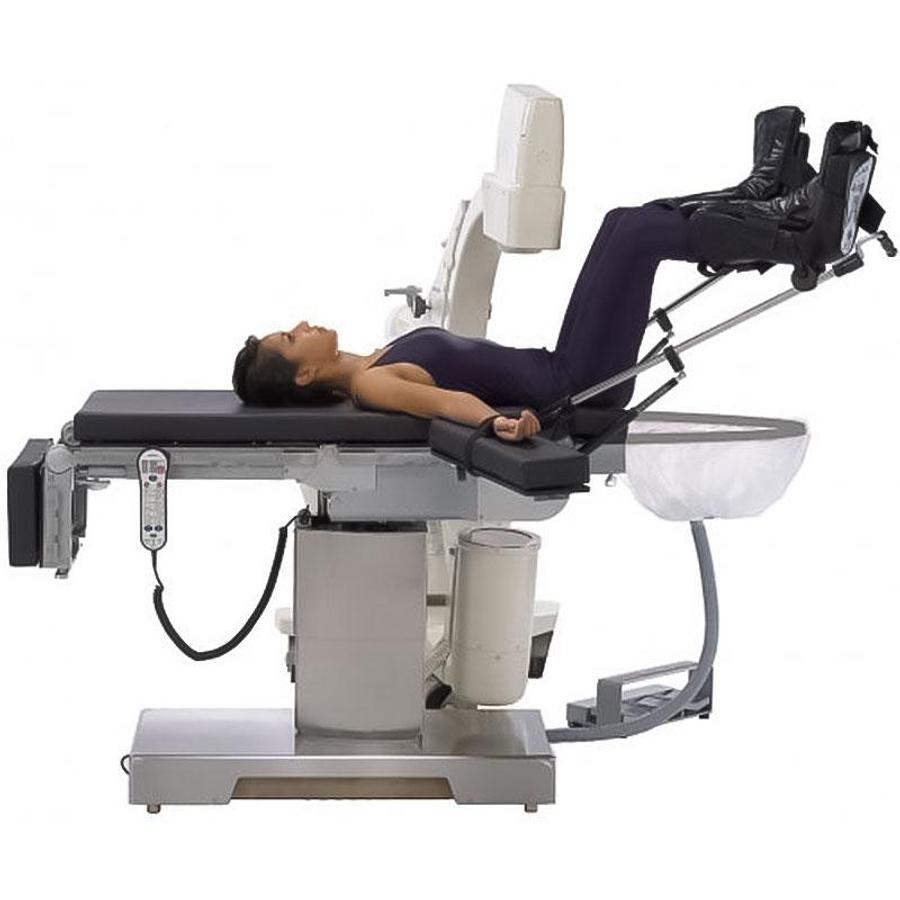

Designed to accommodate surgical procedures in nearly all fields, including urology, neurology, orthopedics, and cardiology. The NUVO V1000 surgical table features an exceptionally sturdy, low-profile base that helps ensure maximum surgeon comfort to reduce fatigue during long procedures.
With meticulous design and engineering, it offers remarkable benefits, such as unprecedented C-arm access, self-diagnosis with an Instant Error Code display, and a control system that automatically prevents sectional conflicts.
- Powered Leg Section
- Unique Shoulder Attachment
- Quick Release Plate
- Kidney Bridge
- Sliding Top
- Reverse Orientation
- Hybrid Option
- Override Controls
- Perineal Cutout
- Table Leveling
- Proudly made in the USA
Specifications
| Manufacturer | NUVO Surgical |
| Model | V1000 Surgical Table |
| Condition | New |
| Max. Weight Capacity | 1000 lbs (455 kg) |
| Height | 26 – 48 in (66 – 122 cm) |
| Slide | 12 in (30.4 cm) |
| Lateral Tilt | 20° from horizontal |
| Trendelenburg | 30° from horizontal |
| Reverse Trendelenburg | 30° from horizontal |
| Back Section | 80° up or 50° down from horizontal |
| Leg Section | 80° up or 105° down from horizontal |
| Head Section | 90° up or 90° down from horizontal |
| Kidney Bar Elevation | 0 ~ 4.7 in (12cm) up from tabletop |
| Flex | Maximum of 25° down from horizontal for both Back and Seat sections |
| Reflex | Maximum of 30° up from horizontal for both Back and Seat sections |
